Pinewood Derby Car Design for Speed: Optimizing Aerodynamics and Weight Distribution

Designing a pinewood derby car that harnesses speed centers on optimizing several key elements. As enthusiasts, we understand that a winning design is much more than its aesthetic appeal—it’s a thoughtful blend of physics principles and fine-tuning. In the realm of pinewood derby competitions, where even fractions of a second can determine a winner, noting the correct specifications such as the width, length, and weight of the car is crucial. These specifications are typically constrained by rules set by the local Scout District or Council, ensuring cars meet standardized dimensions, like a maximum width of 2-3/4 inches, a length that does not exceed 7 inches, and a weight under 5 ounces.

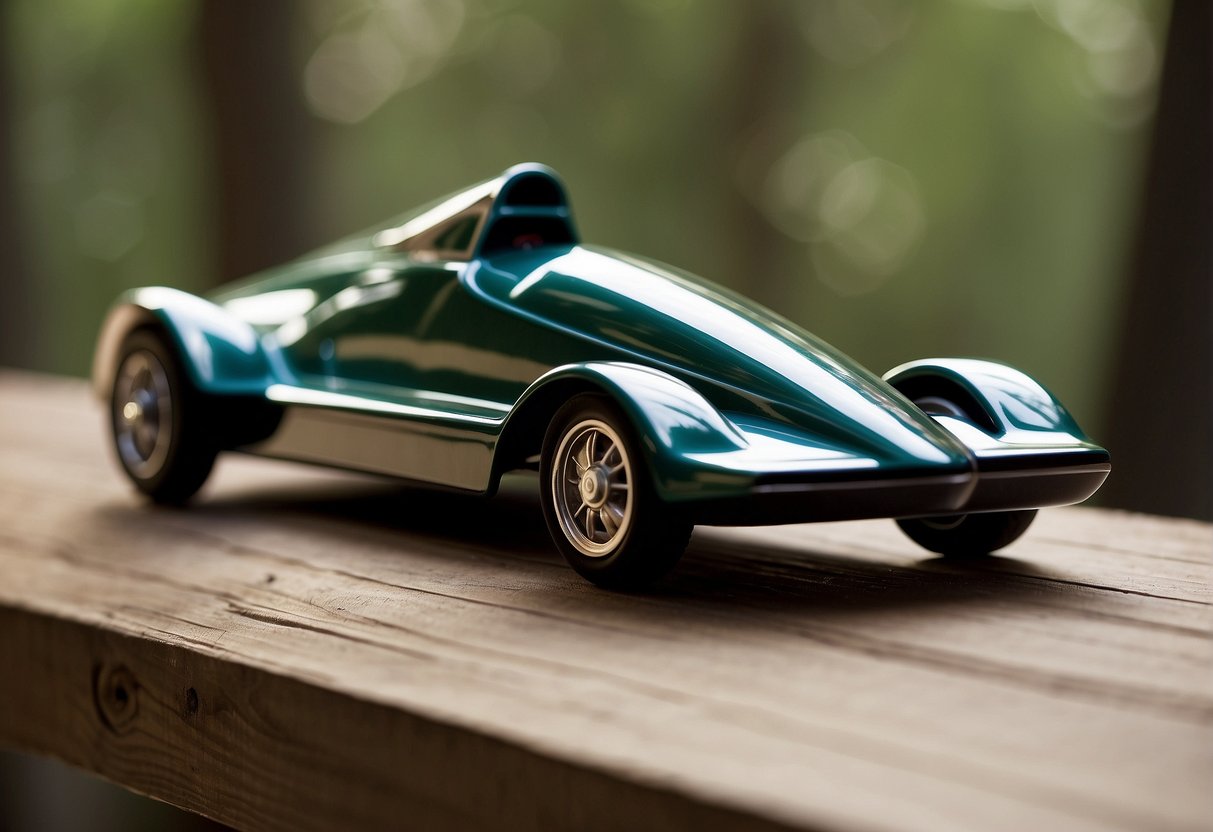

A sleek, aerodynamic pinewood derby car zooms down a polished track, its streamlined design and low profile contributing to its impressive speed

Our experience has taught us that reducing friction is paramount to increase a car’s velocity. Friction acts as a natural brake that slows the car down, so reducing it allows gravity to do its work more efficiently, propelling the car faster down the track. Methodical lubrication of the wheels and axles, precise wheel alignment, and strategic weight distribution all contribute to a swifter car. Techniques to reduce friction include polishing the axles and using lubricants like pure graphite.

We strive to keep in mind that a fast pinewood derby car is also a balance between speed and control. A car that goes fast but cannot maintain a straight trajectory will likely lose energy and momentum, impacting its overall speed. Insights from champion car builders emphasize the importance of axle and wheel treatments to enhance performance. Weight placement is also pivotal; for example, positioning the weight toward the car’s rear can potentially increase speed, as it propels the car forward down the incline. Each adjustment made to the car’s design is a step towards shaving off crucial milliseconds, making the difference between the first and second place at the finish line. 🚗💨

Designing a Winning Pinewood Derby Car

We’re focusing on creating the fastest pinewood derby car possible. This means selecting the best materials, understanding the mechanics for speed, and shaping the car for optimal aerodynamics.

Selecting Quality Materials

Choosing the Right Wood
  • The wood block is the foundation of our pinewood derby car. It must be free of knots and imperfections to ensure structural integrity and performance.

Importance of Proper Wheels and Axles

  • We opt for polished axles and smoothly finished wheels because they reduce friction, which is crucial for gaining speed.

Engineering for Speed

Weight Distribution Aligning Axles
Our car’s center of gravity is placed forward to harness gravity more effectively, resulting in increased acceleration. Perfectly aligned axles ensure straight, efficient runs, limiting any speed-stealing wobble.

Aerodynamic Shapes and Fenders

The design of our pinewood derby car combines aesthetics with function. We understand that every angle and curve affects the car’s ability to cut through the air.

Curved fronts and tapered rears reduce air resistance, allowing our car to reach and maintain top speeds. Fenders over the wheels can further manage airflow.

As Cub Scouts, it is thrilling to watch our gravity-powered vehicles 🚗 zoom down the track. Our car designs are more than just eye-catching; they are meticulously crafted engineering feats. We employ weight optimization ⚖️, precise alignment ⚙️, and fluid aerodynamics 🌡️ to transform a simple wood block into the fastest pinewood derby car possible. Each aspect is a puzzle piece 🧩; when combined correctly, they lead us to the finish line – 🏁 first.

Optimizing the Car for Performance

In optimizing a Pinewood Derby car, precision in weight distribution and reducing friction are crucial to outperform the competition. Both impact the car’s speed and stability, making these factors top priorities in design and modification.

Precision in Weight Distribution

We know that the distribution of weight in a Pinewood Derby car greatly affects its center of gravity, which in turn influences stability and speed. Getting the center of gravity just right is imperative for maximum velocity. Ideally, placing the center of gravity closer to the rear, but not too far, can enhance performance on the downward slope and maintain momentum on the flat part of the track.

Key Weight Considerations:

  • Maximum weight limit: Make sure to use the heaviest allowed weight, typically with tungsten for its high density.
  • Weighing towards the rear: Experiment within rules to optimize the weight toward the back end of the car.

Reducing Friction and Maximizing Momentum

Friction is the enemy of speed; reducing it on axles and wheels is essential. We meticulously polish axles and use high-quality wheels to minimize contact resistance. Lubrication is also vital, with graphite or Max-V-Lube offering the best results. These careful preparations can make a significant difference in the car’s performance, decreasing friction and enhancing momentum.

Friction Reduction Techniques Advantages Materials/Tools
Polished Axles Less contact resistance Metal Polish, Sandpaper
Quality Wheels Smooth rotation Precision-machined wheels
Lubrication Reduced friction Graphite, Max-V-Lube

Careful wheel and axle alignment is equally important to prevent energy loss from misdirected motion. Constant testing and refinement ensure that our car stays on a straight course, reducing the chance of friction with the track.

Pre-Race Preparations and Strategies

Before the race begins, it’s crucial we make meticulous preparations. By paying attention to the finer details, we greatly increase our chances of having the fastest Pinewood Derby car at the starting pin.

Final Touches: Sanding and Polishing

Sanding and Polishing Tips:

  • Begin with coarse sandpaper to shape the body and progressively move to finer grains.
  • For a smooth finish, sand in the direction of the wood grain and avoid circular motions.
  • Polish the body with a soft cloth to give it a sleek surface which reduces air friction.

Polishing not only improves the visual aesthetics but also minimizes wind resistance. We should be sure the wood is free of any blemishes and is as smooth as possible.

Lubrication Best Practices

Use dry lubricant like pure graphite.

To minimize friction between the wheels and the axles, it’s essential to apply a high-quality lubricant:

  • Type of Lubricant: Pure graphite is preferred due to its ability to withstand the typical 70-80 F degrees temperature range of a derby.
  • Axle Preparation: Axles should be polished before lubrication to remove any manufacturing imperfections.
  • Application: Pack the lubricant firmly into the wheel bore and onto the axles.

Correct lubrication can make a significant difference in the speed and smoothness of our car’s run.

Testing and Adjustments for Alignment

Testing is crucial for determining the stability and alignment of our Pinewood Derby car:

Test Purpose Action Adjustment
Roll Test To check straightness Roll the car on a flat surface Adjust the wheels for true alignment
Balance Test To ensure weight is distributed evenly Place car on a fulcrum Add or remove weights as needed

🚨 A Warning: Incorrect wheel alignment can lead to significant speed losses. Make sure to check for steering issues, camber or negative camber, and ensure that the wheels are not rubbing against the car body or the track guide rails.

By following these pre-race preparations and strategies, we boost our car’s performance potential. Remember, the devil is in the details, and these final checks could be the difference between victory and second place.
