Multi Layer Steel Head Gasket: Your Ultimate Guide to Durability and Performance

In the automotive world, the role of head gaskets is crucial in sealing the gap between the engine block and the cylinder head.

Multi-layer steel (MLS) head gaskets represent a significant technological advancement in providing this seal.

MLS head gaskets are constructed from multiple layers of steel, making them tolerant of the high pressure and temperature environments found within modern combustion engines.

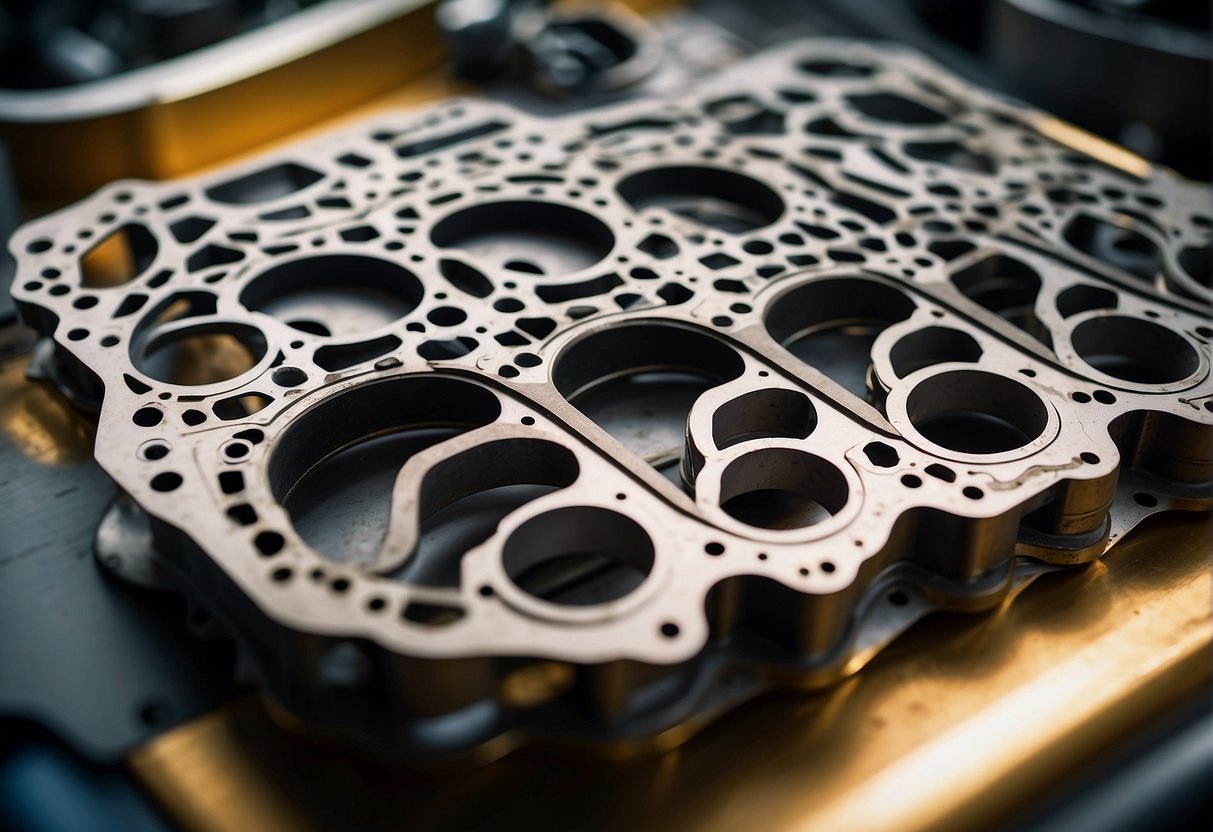

A multi-layer steel head gasket sits between engine block and cylinder head, with visible layers and metallic texture

MLS head gaskets are designed to accommodate the expansion and contraction of engine components that occur due to heating and cooling cycles.

Their layered construction typically includes a core of spring-like stainless steel to which soft outer layers are bonded.

This design provides strength and the ability to rebound, which helps to maintain a seal over time. Additionally, they often feature advanced coatings that further enhance their sealing abilities.

We find that the more advanced MLS gaskets may also incorporate features like LaserWeld technology, which adds a stopper layer to improve the gasket’s resistance to high combustion pressures.

This technology is indicative of the continued innovation within the industry to address the challenge of sealing increasingly powerful and efficient engines.

When properly installed, multi-layer steel head gaskets can provide a reliable and durable seal that optimizes engine performance and longevity.

Head Gasket Fundamentals

Head gaskets are crucial in maintaining the integrity of an engine’s combustion process. Their design and material composition play key roles in sealing the combustion chamber and ensuring compatibility with various engines.

Materials and Design

Multi-layer steel (MLS) gaskets are our primary focus due to their exceptional sealing properties.

These gaskets typically consist of three or more layers of stainless or carbon steel. Between them, elastomer coatings are applied to enhance micro sealing capabilities.

Freight vehicles and recreational vehicles (RVs) that demand robust sealing solutions often rely on flexible gaskets that can withstand high pressures and temperatures.

The versatility of MLS gaskets, with options ranging from three to five layers, accommodates a wide range of engine types.

A notable feature of these gaskets is the stopper layer, crucial for macro sealing by focusing the clamping force, hence enhancing the seal around the cylinder head.

Engine Compatibility

Choosing the right head gasket involves understanding the specific demands of an engine’s make and model.

Compatibility is determined by the engine’s size, the material of the engine block and cylinder head, and the type of fuel it uses.

Our experience with various engines, from commercial to high-performance racing applications, demonstrates that the sealing solution must be tailored to resist the unique conditions of each engine, such as temperature variations and compression ratios.

Each engine design requires careful consideration of gasket thickness and material resilience.

MLS gaskets generally support a broad spectrum of engine designs with their adaptability, providing a reliable seal even in engines where bore distortion or cam journal distortion is a concern.

Performance and Reliability

In our experience with MLS head gaskets, their multi-layer construction significantly enhances durability and reliability. These state-of-the-art gaskets manage distortion and maintain optimal sealing under high pressure, essential for high-performance engines.

Managing Distortion and Pressure

We’ve found that the structure of MLS head gaskets addresses common issues such as bore distortion and head lift.

The multiple layers, typically made from stainless steel, allow the gasket to flex and absorb the distortion and clamping force applied on the engine’s head.

This durability translates into reliable performance even under extreme conditions.

Clamping Force: MLS gaskets designed to distribute this force evenly to prevent head lift.

Sealing Effectiveness

MLS gaskets are engineered to provide both macro and micro sealing.

The gaskets’ outer layers create a strong combustion seal while the inner layers ensure a fine micro sealing against fluids.

This results in a more reliable seal across varying surface finishes.

Surface Finishes:

It’s key for us to maintain specific surface finishes on the head and block to enhance the gasket’s sealing effectiveness. Optimal surface finishes work in conjunction with the gasket’s layers to create a tight and enduring seal.

To further elucidate the specifics of sealing performance, we provide you with a comparison table that shows how various parameters contribute to the overall effectiveness of MLS head gaskets.

Sealing Aspect Macro Sealing Micro Sealing
Combustion Chambers Resists High Pressure Prevents Minute Leaks
Coolant Channels Stable Under Thermal Expansion Seals Against Fluids

Installation and Maintenance

When installing a multi-layer steel (MLS) head gasket, attention to detail is critical for longevity and optimal performance.

To ensure proper function, carefully follow the specific guidelines laid out by manufacturers.

Proper Installation Techniques

Surface Preparation:

Before installing an MLS head gasket, we must ensure that the engine block and cylinder head surfaces are clean and free of any debris.

The surface finish is paramount, which requires an inspection for flatness and the correct surface roughness. The recommended surface roughness is usually between 20 to 50 microinches Ra, but this value may vary based on the gasket manufacturer’s specifications.

Check for Foreign Material:

Never skip inspecting the new gasket before installation. Even the smallest bit of foreign material can compromise the seal.

Design Aspect Installation Maintenance
Beads around combustion chambers Ensure alignment for proper sealing Regularly check for leaks
Oil/Coolant passages Apply thin silicone bead if specified Monitor for cross-contamination

Applying sealants to an MLS head gasket is usually not required and can even hinder performance; however, there may be manufacturer-specific exceptions where a thin bead of silicone could be advisable around some coolant passages. Always refer to the installation instructions provided with your MLS gasket for such details.

Consistency in bolt torque is another critical step.

We should use a reliable torque wrench and follow a manufacturer-recommended pattern and torque specifications during the head installation process. The correct torque ensures uniform clamping force across the gasket.
