How Do You Calibrate a Speedometer: A Step-by-Step Guide

Calibrating the speedometer in a vehicle is crucial for maintaining the accuracy of speed readings.

Overtime, factors such as tire wear or replacement of stock parts with aftermarket ones can cause discrepancies between the actual speed of the vehicle and what is displayed on the speedometer.

An uncalibrated speedometer can not only lead to speeding tickets but may also contribute to worse fuel efficiency and off calibration of other vehicle systems that rely on accurate speed data.

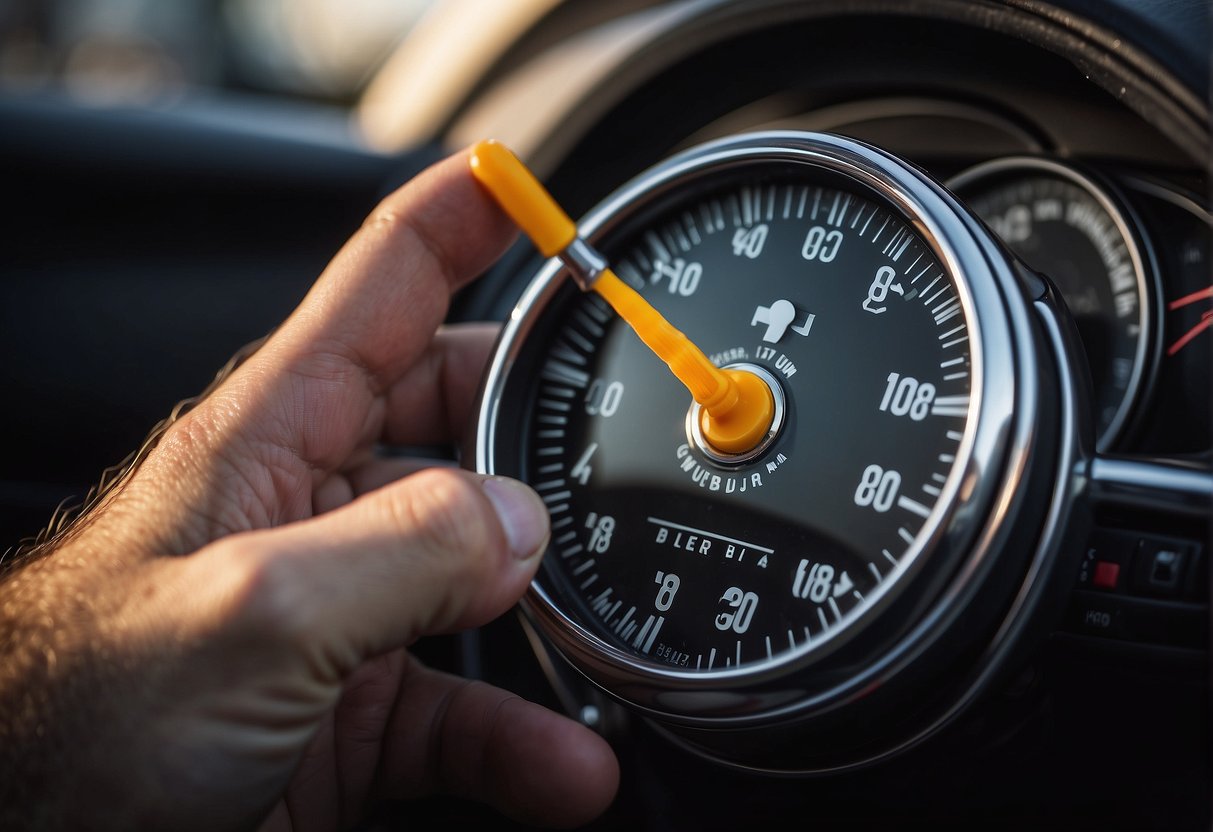

A hand adjusting a speedometer dial with a screwdriver

What we need to ensure is that our speedometer is giving us the correct information.

For digital speedometers, using a calibration tool can quickly adjust the readings to match the vehicle’s true speed.

Meanwhile, mechanical speedometers might require replacement of the gear inside the instrument.

When calibrating your speedometer, you might do it via a specific calibration button in some vehicles. For a comprehensive calibration, it may require a visit to a professional auto shop.

They have the precise equipment and know-how to adjust for factors such as tire size, particularly if you’ve upgraded to larger aftermarket tires.

Calibration is not only about compliance with laws but about the reassurance that the vehicle’s performance is as expected.

Speedometer Basics and Importance of Calibration

Speedometers are crucial for displaying driving speed, and accurate calibration ensures the safety and compliance of your vehicle.

Let’s explore how they function and why correct calibration is imperative.

Understanding Speedometer Functionality

The speedometer in your vehicle relies on data concerning wheel rotations to gauge speed. As tires rotate, a speedometer cable or sensor translates these revolutions into a speed reading.

This is displayed on your dashboard, enabling you to monitor how fast you’re traveling.

When calibration is precise, the reading on your speedometer reflects your actual speed.

However, if the calibration is off, the speedometer reading could mislead you. For instance, it might read 50 mph when you are actually traveling at 45 mph.

Regular speedometer calibration is essential to ensure the accuracy of these readings.

The Impact of Tires on Speedometer Readings

Changing tire size affects speedometer accuracy because tire diameter alters the number of tire revolutions per mile.

Larger tires cover more ground per revolution compared to smaller ones, leading to fewer revolutions per mile.

Here’s how tire size impacts the speedometer:

Tire Size Change Revolution Increase/Decrease Circumference Change Speedometer Reading Accuracy
Smaller Tire Size Increase Decrease Inaccurate (Overestimation)
Larger Tire Size Decrease Increase Inaccurate (Underestimation)

When tires are not the size for which the speedometer was calibrated, the reading can be incorrect.

We recalibrate speedometers to match the new size, ensuring that the number of revolutions per mile reflects the actual speed.

Without proper calibration, an inaccurate speedometer can result in speed-related violations or unsafe driving conditions.

Step-by-Step Guide to Speedometer Calibration

Calibrating your vehicle’s speedometer is essential when modifications like tire size changes are made or if discrepancies between actual speeds and the speedometer reading are noted.

We’ll outline the calibration process for both mechanical and electronic speedometers to ensure accurate readings.

Determining the Need for Calibration

Before we begin the calibration process, it is crucial to test the accuracy of your speedometer.

You can detect a misaligned speedometer if the actual speed varies from the speedometer reading.

Critically, any significant tire size change necessitates a calibration.

Mechanical Speedometer Calibration Process

Mechanical speedometers work with gears and cables connected to your vehicle’s transmission. Calibration involves these steps:

  1. Identify Your Current Driven Gear: Check the current color and tooth count of your vehicle’s driven gear located near the transmission.
  2. Calculate the New Driven Gear Size: Based on your tire size and the original gear settings, calculate the size of the new driven gear needed for accuracy.
  3. Install the New Driven Gear: Replace the old gear with the new one, ensuring it’s correctly seated in the transmission.

Once the new gear is installed, a test drive is crucial to verify the calibration’s accuracy.

Electronic Speedometer Calibration Procedure

Calibration of an electronic speedometer is typically more straightforward than its mechanical counterpart. Here’s how we do it:

  1. Locate the Calibration Button: Most electronic speedometers have a calibration button, often located on the instrument panel.
  2. Enter Calibration Mode: Press and hold the calibration button. Follow the on-screen prompts, which usually involve driving at a specified speed or covering a particular distance.
  3. Complete the Recalibration: After finishing the inputted tasks, the speedometer calculates the new calibration settings.

A test drive is recommended to confirm that the speedometer reading matches the actual speed.

Common Issues and Troubleshooting

When calibrating a speedometer, we often encounter issues like inaccuracies or the need for adjustments after modifications such as changing tire sizes.

Understanding these problems will allow us to correct the speedometer reading effectively.

Diagnosing an Inaccurate Speedometer

If you’ve noticed a discrepancy in your speedometer readings, it could be due to a variety of factors.

One common issue is a change in tire diameter. Larger or smaller tires than those that came with the vehicle can lead to an error in the displayed speed.

For example, larger tires can cause the speedometer to read slower than your actual speed, potentially resulting in unintentional speeding.

Conversely, smaller tires might make it seem like you’re traveling slower than you actually are.

Determining if there’s an issue often involves using a GPS-based speedometer app for a more accurate reading.

This comparison can give us an indication if our speedometer is off and by how much.

Also, noting how the vehicle performs at various speeds on the highway compared to the displayed mph can provide clues to any inaccuracy.

A consistent discrepancy at higher speeds could signal a need for recalibration to avoid the risk of **speeding tickets**.

Adjusting for Tire Size Changes

When we alter the size of our tires, recalibration of the speedometer is necessary.

Larger aftermarket tires, for instance, affect the speedometer because they cover more ground per revolution, which causes the speedometer to register fewer miles per hour than you’re actually traveling.

The process to adjust this involves calculating the percentage of change in the tire diameter and applying this to the speedometer calibration settings.

Here’s a simple formula for a manual recalibration:

(New Tire Diameter / Original Tire Diameter) x Original Speedometer Reading = Actual Speed

If you’re not comfortable with manual calculations, speedometer calibration tools are available to automate the process.

It is also vital to check the vehicle’s manual or with the manufacturer for specific instructions on recalibration, as it may differ based on the vehicle’s make and model.

Legal and Safety Considerations

Ensuring the accuracy of your vehicle’s speedometer is not only a matter of following the law but also one of maintaining safety on the road.

We must regard speedometer calibration with the seriousness it deserves. Inaccuracies can lead to speeding tickets or, worse, endanger both ourselves and other road users.

Addressing Speedometer Accuracy:

Speedometer readings can diverge from actual speeds due to factors like aftermarket tire changes or gear ratio adjustments.

We are responsible for verifying the calibration of our speedometers to stay within legal speed limits and prevent inadvertent speeding.

Key Consideration Importance
Speedometer Accuracy To respect traffic laws and avoid speeding.
Safety To prevent road accidents caused by incorrect speed assessment.
Legal Implications of Speedometer Calibration:

If we encounter legal issues such as a speeding ticket, an accurately calibrated speedometer can serve as evidence to challenge the charges.

It’s prudent for us to calibrate our speedometers after making any modifications that could impact their accuracy. This preventive step can avert legal repercussions and contribute to safe driving practices.
