What is Forced Induction on a Car: Enhancing Engine Performance Explained

Forced induction is a technique used to increase an engine’s efficiency and power output by forcing extra air into the combustion chamber.

Engines equipped with forced induction systems are capable of producing more power than naturally aspirated engines of the same size. This is because the denser the air intake, the more fuel can be combined in the combustion process, resulting in a more powerful explosion in each cylinder.

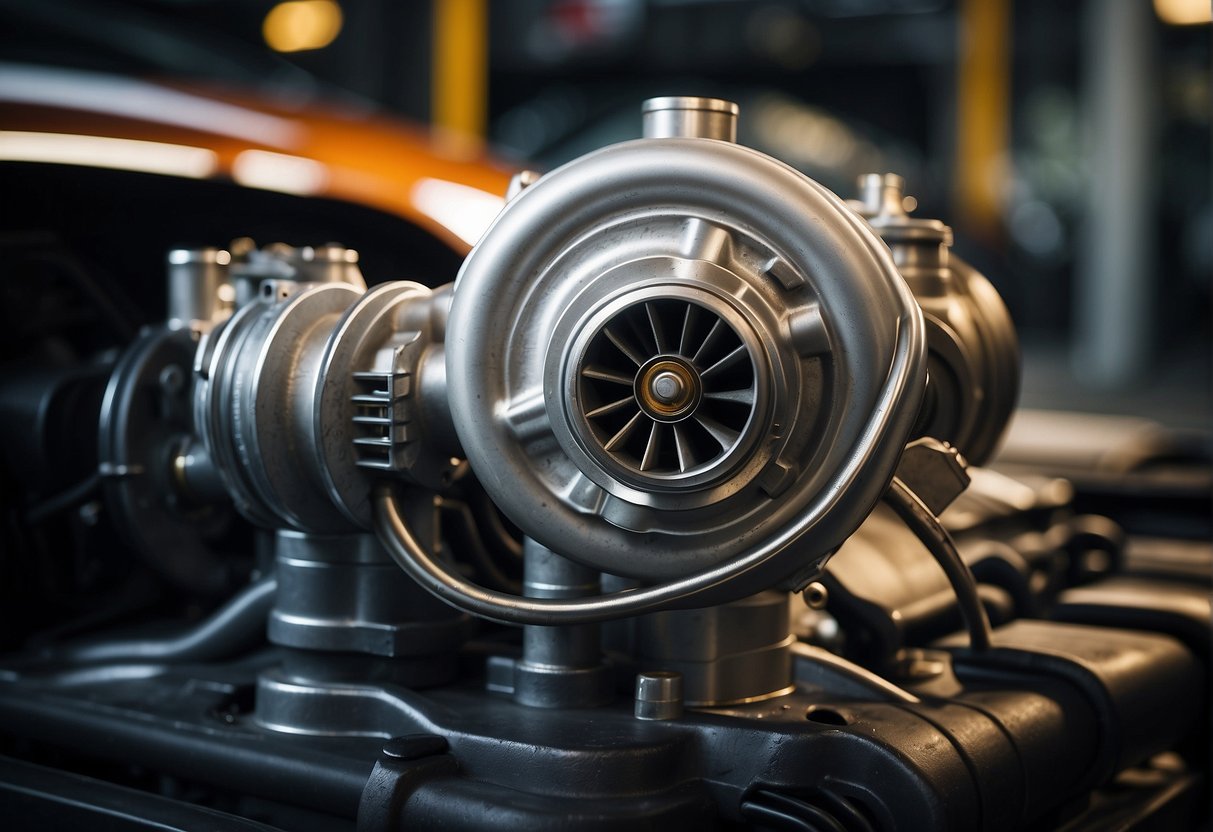

A car's turbocharger or supercharger forces more air into the engine, increasing power and efficiency

There are two main types of forced induction: turbocharging and supercharging. Both methods aim to compress air flowing into the engine, but they differ in their source of power.

A turbocharger uses the exhaust gases to spin a turbine and compress the intake air. On the other hand, a supercharger uses a belt connected to the engine’s crankshaft to power the air compression directly.

We recognize the importance of this technology in the automotive industry as it has allowed smaller, more efficient engines to produce the power outputs of larger engines while maintaining better fuel economy.

Basics of Forced Induction

Forced induction systems like turbochargers and superchargers are designed to increase an engine’s power output by compressing air that enters the engine, allowing more oxygen to fuel combustion.

Unlike naturally aspirated engines that rely solely on atmospheric pressure, forced induction pressurizes the air intake, thus dramatically boosting engine performance.

Turbocharging versus Supercharging

Turbochargers harness the energy of exhaust gases to spin a turbine, which then drives a compressor to push more air into the engine’s combustion chamber.

Superchargers, on the other hand, are mechanically driven by the engine’s crankshaft, directly increasing air intake without waiting for exhaust build-up.

Key Components of Turbochargers

Turbochargers consist primarily of two main parts: the turbine and the compressor.

The turbine is connected to the exhaust system and spins when exhaust gases pass over it. The compressor, which is connected to the turbine via a shaft, draws in and compresses air, delivering it at high pressure to the engine.

How Superchargers Work

There are various supercharger types, including the Roots, twin-screw, and centrifugal superchargers. Each operates differently, but all achieve the goal of forced induction by forcing air into the engine.

Type How it Works
Roots Supercharger Uses meshing lobes to transfer air to the intake manifold.
Twin-Screw Supercharger Traps air between interlocking screws and compresses it as it moves through the supercharger.
Centrifugal Supercharger Uses a spinning impeller to draw air in and a diffuser to expel it into the engine at high pressure.
Electric Supercharger Uses electrical power to compress air, rather than being mechanically driven by the engine.

Enhancing Engine Performance

Forced induction systems serve as pivotal upgrades for automotive enthusiasts seeking to amplify their vehicle’s performance. Not only do these systems boost power output, but they also improve efficiency and fuel economy. Let’s explore how this technology elevates engine capability.

Increasing Power Output

Forced induction allows us to increase the engine’s horsepower and torque without significantly increasing displacement.

The primary benefit of adding a turbocharger or a supercharger to an engine is the significant boost in power output that one can achieve. These components compress the intake air, increasing its density and thus allowing more air to enter the combustion chamber. When combined with the appropriate amount of fuel, this results in a more powerful combustion process.

Components Crucial to Power Gain:

  • Turbochargers: Increase intake air pressure and density.
  • Superchargers: Driven by the engine’s crankshaft, force more air into the engine.
  • Intercoolers: Reduce the temperature of compressed air for higher density.

Efficiency and Fuel Economy

While the primary goal of forced induction is to enhance power, it also inadvertently improves fuel efficiency.

By forcing more air into each cylinder, the engine can burn fuel more completely, which means it does more work with each explosion in the combustion chamber. This efficient use of fuel can lead to improved fuel economy, particularly in situations where the added power is not being fully utilized.

Note: Efficiency gains are dependent on driving habits and conditions.

Components Affecting Turbo Efficiency

A multitude of factors influence the efficiency of a turbocharger.

Two critical aspects are boost pressure and the compression ratio of the engine.

Boost pressure must be carefully managed to prevent engine knock, which occurs when fuel is prematurely ignited in the combustion chamber, potentially leading to engine damage. Optimal turbo efficiency also depends on reducing turbo lag—the delay between throttle application and the arrival of the boost—allowing for quicker acceleration.

Component Function Impact on Efficiency
Boost Controller Regulates the boost pressure Prevents knock and engine damage
Waste Gate Diverts excess exhaust gas away from the turbocharger Controls turbo speed and reduces lag
Blow-off Valve Releases unused boost pressure Protects against surge and lowers lag

Managing Turbocharger and Supercharger Heat

Managing heat in forced induction systems is vital to maintain efficiency and engine longevity. We focus our attention on the essential roles of intercoolers and cooling systems, revealing how these components keep temperatures in check.

Intercoolers and Cooling Systems

Essentials of Intercooling:
  • Intercoolers reduce the temperature of air compressed by turbochargers or superchargers, which is vital because cooler air has a higher density with more oxygen available for combustion.
  • One primary concern is heat soak; a condition where the intercooler becomes too hot, diminishing its cooling efficiency.
  • Intercoolers can be either air-to-air or air-to-water. The former uses ambient air for cooling, the latter uses a coolant fluid, which can be more efficient in tight engine bays or high-performance setups.

The Role of Intercoolers in Performance Tuning

Maximizing Engine Performance:
  • An intercooler’s ability to lower intake air temperatures results in a greater air mass entering the combustion chamber, directly enhancing engine performance.
  • Performance tuning often involves adjusting the turbocharger or supercharger boost levels. With higher boost comes greater heat, hence the central role of intercooling.

Upgraded intercoolers come into play when we’re tuning the engine to operate beyond its factory settings, allowing it to handle increased levels of boost while maintaining efficiency. Monitoring intercooler effectiveness is paramount, as improved heat dissipation directly correlates to better performance, increased power output, and the reliability of our tuned engines.

To supplement our intercoolers, we also look at enhancing the overall cooling capacity with larger radiators or introducing methanol injection systems, which can provide additional cooling as the liquid absorbs heat when it vaporizes in the intake tract.

Technical Considerations and Maintenance

When incorporating forced induction systems into a vehicle, understanding both the installation complexities and the upkeep demands is crucial to maintain optimal performance and reliability.

Installation and Technical Challenges

We face several technical challenges when installing a forced induction system such as turbocharging or supercharging on a naturally aspirated engine.

These challenges include adapting the exhaust manifold to fit a turbocharger, managing increased air-to-fuel ratios, and ensuring the intake manifold can handle boosted pressures.

During installation, attention to detail is paramount as a minor oversight can significantly impact the system’s efficiency and power delivery.

  • Complexities:
    • Ensuring compatibility with existing components.
    • Addressing alterations to the fuel system, like upgrading the fuel pump and injectors.
    • Integrating a wastegate or blow-off valve to regulate pressure.
  • Installations:
    • Adapting turbo systems like twin-turbo or twin-scroll turbochargers for sequential power.
    • Considering twin-charging for enhanced throttle response and low-end torque.

Longevity and Upkeep of Turbo Systems

Regular maintenance is essential

for the longevity of turbo systems. Boosted engines operate under higher stress, which necessitates a more rigorous upkeep schedule compared to naturally aspirated counterparts.

This includes frequent oil changes with high-quality oil, as turbochargers and superchargers put additional stress on the engine’s oil.

  • Maintenance Requirements:
    • Regular inspection of the turbocharger’s ball bearings for wear.
    • Checking the health of the belt that drives the supercharger.
    • Monitoring for any changes in performance, which may signal issues with the forced induction system.
⚠️ A Warning

Improper installation or neglecting routine maintenance can lead to drastic reductions in performance and could potentially result in engine damage.

Therefore, it’s critical that we pay close attention to the condition of the entire forced induction system, especially after modification or tuning.
