Timing Gear in Car Engine: Your Essential Guide to Function and Maintenance

Timing gears play a central role in the seamless operation of our car engines, intricately designed to maintain the synchronization between the crankshaft and camshaft.

This synchronization ensures that the engine valves open and close at precisely the right moments during the intake and exhaust strokes.

A well-functioning timing gear system is crucial for the engine’s performance and fuel efficiency, as it helps to optimize the opening of valves in relation to the position of the pistons, thus enabling the engine to run smoothly.

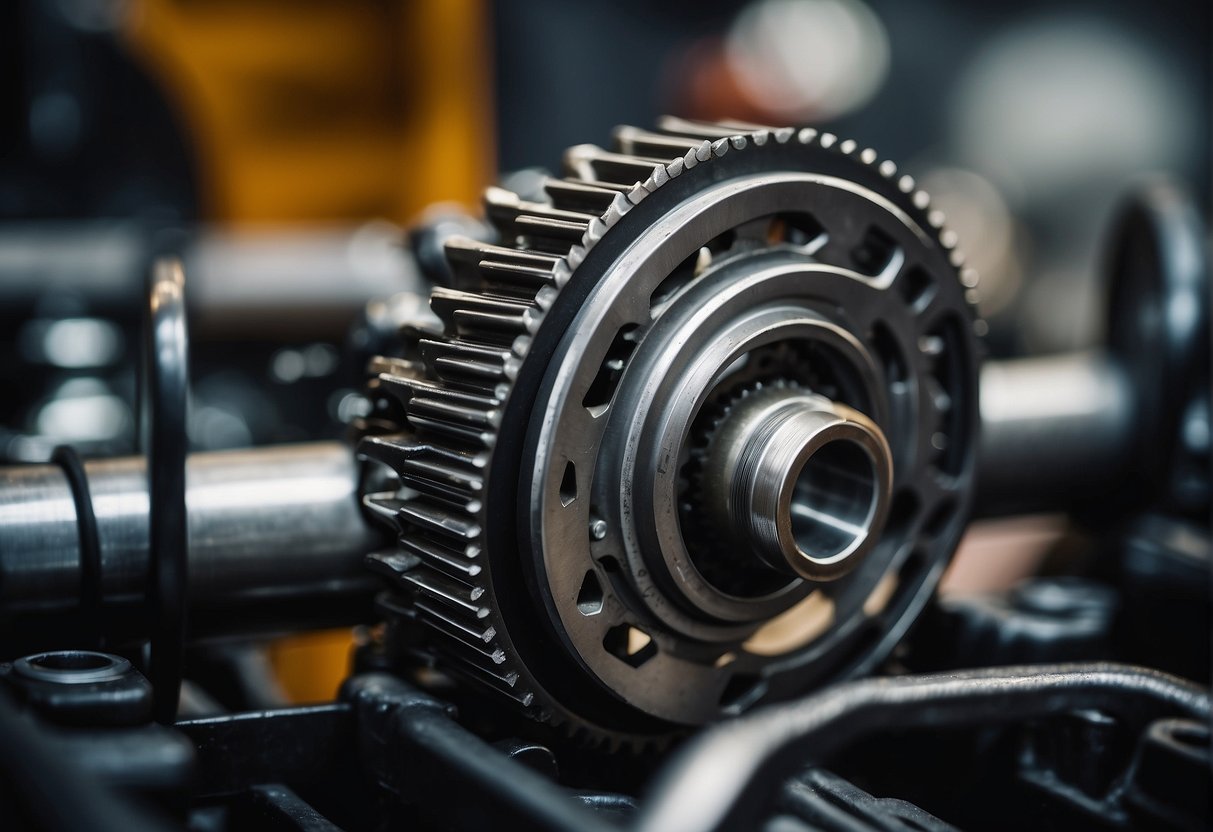

The timing gear rotates as the engine runs, synchronizing the movement of the camshaft and crankshaft. Gears and chains connect to other engine components

Maintenance of the timing gear is a critical aspect of vehicle upkeep as it directly affects the longevity and reliability of our engine.

Neglect in this area can lead to a timing gear failure, which may cause the engine to stop running and potentially incur significant damage.

Regular inspections can prevent such catastrophic failures and maintain optimal engine performance.

Fundamentals of Engine Timing

In the realm of internal combustion engines, timing is the synchrony of dynamic events—precisely orchestrating the motion of pistons, valves, and spark ignition. This harmony is crucial for peak performance and efficiency.

Understanding Timing Components

Timing Gear: Fundamental in managing the relationship between the crankshaft and camshaft, timing gears are often made of robust materials like steel to endure the stress of engine operation.

Timing Belt and Chains: While gears are one method of synchronization, timing belts and chains are alternative means of connecting the crankshaft and camshaft. Belts are quieter and result in less friction, whereas chains are known for durability.

The camshaft gear and crankshaft gear mesh together, creating a direct link ensuring that as the crankshaft rotates, driving the pistons up and down, the camshaft also turns at a calculated rate to open and close the engine valves. Chain drives or timing belts facilitate power transmission, depending on engine design.

The performance of an engine’s camshaft timing gear is crucial; it governs valve timing to control air-fuel mix entry and exhaust gas exit from the combustion chamber.

The Role of the Camshaft and Crankshaft

Camshaft: Responsible for opening and closing the intake and exhaust valves, the camshaft plays a pivotal role in the engine’s breathability and subsequently its power output.

Crankshaft: Converts linear piston motion into rotational movement that ultimately drives the vehicle’s wheels. The crankshaft’s synchronization with the camshaft is essential to ensure that valve openings align with piston positions.

We’ll find the camshaft located above the cylinders in overhead cam engines or nestled in the engine block in cam-in-block designs.

The crucial aspect is the valve timing—when intake valves open to admit air and fuel, and when exhaust valves open to expel combustion gases.

Our engine’s performance hinges on the precision of this timing; a split-second delay or advance could impact power or cause damage.

Synchronization is so central that if the camshaft or crankshaft timing is even slightly misaligned, the engine may run poorly, if at all.

Identifying and Diagnosing Timing Issues

Timing issues in an engine can be complex, but understanding what to look for can make identifying and diagnosing these problems more manageable. We’ll guide you through the signs of timing problems and how to inspect the components for wear.

Symptoms of Timing Problems

Symptoms:
  • Engine misfires or runs poorly.
  • Rattling noise from the engine.
  • Engine vibrations.
  • Engine fails to run.

Your engine relies on precise timing to operate efficiently. Misfires or poor performance can indicate a timing issue.

You may also notice a rattling noise, which suggests the gears may have damaged teeth or are experiencing wear.

Timing problems often cause unusual vibrations due to the imbalance they create. In severe cases, an engine might fail to run if the timing components are severely damaged or fail completely.

Warning: Ignore these symptoms, and you could face severe engine damage.

Inspecting Timing Components for Wear

Inspecting the timing components for wear is critical in diagnosing timing issues.

Begin by examining the timing chain or belt tension; a worn or stretched chain can cause slack, leading to inaccurate valve timing.

Look for the correct alignment of timing marks as misalignment can indicate a slipped chain or belt.

Component Check For
Timing Chain/Belt Stretching, wear, proper tension
Timing Gears Damaged teeth, smooth operation
Tensioner Proper operation, wear
Timing Cover Leakage, damage, signs of coolant or oil infiltration

Remember to inspect the timing cover, as damage here could lead to oil or coolant leaks.

A compromised cover can also cause premature wear of timing components due to contamination of debris.

Finally, a malfunctioning tensioner can lead to improper tension on the chain or belt, which can lead to a host of timing issues.

Regularly inspect these parts to ensure the health of your engine and avoid costly repairs.

Replacing and Maintaining Timing Gears and Belts

Replacing or maintaining the timing gears and belts in your vehicle is crucial to ensuring optimal engine performance and preventing catastrophic damage. As we guide you through these processes, remember that precision and careful attention to detail are non-negotiable for the longevity and reliability of your engine.

Timing Gear and Belt Replacement Process

Initial Steps:


1. Begin by preparing the engine. Ensure the ignition is off and the engine has had sufficient time to cool down. Disconnect the battery to prevent any accidental starts or electrical shorts.
2. Remove any components obstructing access to the timing cover, such as the serpentine belt and potentially the water pump, depending on configuration.
3. Carefully take off the timing cover to expose the timing gears and belt.

Ensure all parts, such as bolts and covers, are kept safe and organized for reassembly.
  1. With the timing gears visible, align the timing marks as per the vehicle’s service manual instructions.
  2. Loosen the tension on the timing belt or chain carefully without disrupting the alignment until you can remove it from the sprockets.
  3. Inspect the timing gears for wear; look for any signs of damage to the teeth or sprockets.
  4. Install the new timing belt or chain, making sure that the timing marks remain aligned during the process.
Component Inspection Point Action Required
Timing Belt Cracks, Fraying Replace if necessary
Sprockets Wear on Teeth Replace if necessary
  1. Once the new belt or chain is in place, apply the correct tension before proceeding to reassemble.
  2. Replace the timing cover and reassemble any parts that were removed during the process.
  3. Reconnect the battery and start the engine to ensure it runs properly with no unusual noises or performance issues.

Pro Tips for Timing Maintenance

Maintaining your timing belt or chain is not just about acting when a replacement is required; it involves regular checks and preventive actions to maximize longevity and maintain reliable engine operation.

Regular Inspection:


– Check the timing belt or chain as part of your regular maintenance schedule.
– Pay attention to manufacturer guidelines for replacement intervals—these can vary significantly from one vehicle to another.

Avoid contact with oil or other contaminants that could degrade rubber belts.
  • Consider replacing related components, such as tensioners and pulleys, during belt replacement to ensure all parts function harmoniously.
  • Listen for unusual noises or signs of timing component stress, which could preemptively indicate the need for inspection or replacement.
  • Always consult a professional mechanic if you are uncertain about the condition of the timing system.
⚠️ A Warning

Neglecting timing belt or chain maintenance can lead to severe engine damage, including bent valves and piston damage, resulting in costly repairs.

Advancements in Engine Timing Mechanisms

In the evolution of the internal combustion engine, there have been significant advancements in the timing mechanisms that control the complex dance between the engine’s moving parts. These improvements have yielded better performance, reduced emissions, and set the stage for even more sophisticated engine designs.

Variable Valve Timing Technology

Variable Valve Timing (VVT) technology has marked a major leap in engine design. This system allows us to alter the timing of the valve opening and closing events dynamically, adapting to the engine’s speed to optimize the air/fuel mixture.

The introduction of VVT provided numerous benefits:

  • Better acceleration: By optimizing valve timing at higher engine speeds, we see improved power and torque.
  • Reduced emissions: VVT helps in making the combustion process more efficient, thereby decreasing the harmful emissions produced.
  • Enhanced fuel economy: Improved combustion efficiency also means that more energy is extracted from the fuel, leading to improved mileage.

In VVT systems, the camshaft timing gear is a critical component. It must endure considerable stress, especially at high engine speeds where the rotational motion exerts significant forces.

To combat wear and potential engine failure, newer designs incorporate robust materials and fibers that enhance the durability of the timing gear.

Future Trends in Timing System Design

The future of timing mechanisms is poised to focus on digital and programmable systems.

We can anticipate several interesting trends that will shape upcoming engine timing mechanisms:

  • A shift toward electronic control for even finer precision in timing.
  • Integration with hybrid technologies, where timing systems will need to work in concert with electric motors.
  • The quest for even quieter operation, vital for the increasing demand for a refined driving experience.

The design of these systems is likely to emphasize modularity to easily integrate into various types of engines, including those in electric vehicles (EVs).

As we prioritize sustainability, our timing mechanisms will be increasingly designed to further minimize emissions and maximize efficiency across diverse driving conditions.

Moreover, the need to prevent engine components’ wear will lead to even more resilient materials capable of withstanding the rigors of engine block environments at high speeds without succumbing to stress or leading to premature engine failure.
