How to Calculate Volumetric Efficiency: A Guide for Optimal Engine Performance

Volumetric efficiency (VE) is a critical factor that determines an engine’s performance. It gauges the efficiency with which an engine can fill its cylinders with air, which is crucial for the combustion process.

Higher volumetric efficiency means the engine can take in more air, mix it more effectively with fuel, and produce more power. In essence, VE reflects how well an engine ‘breathes.’

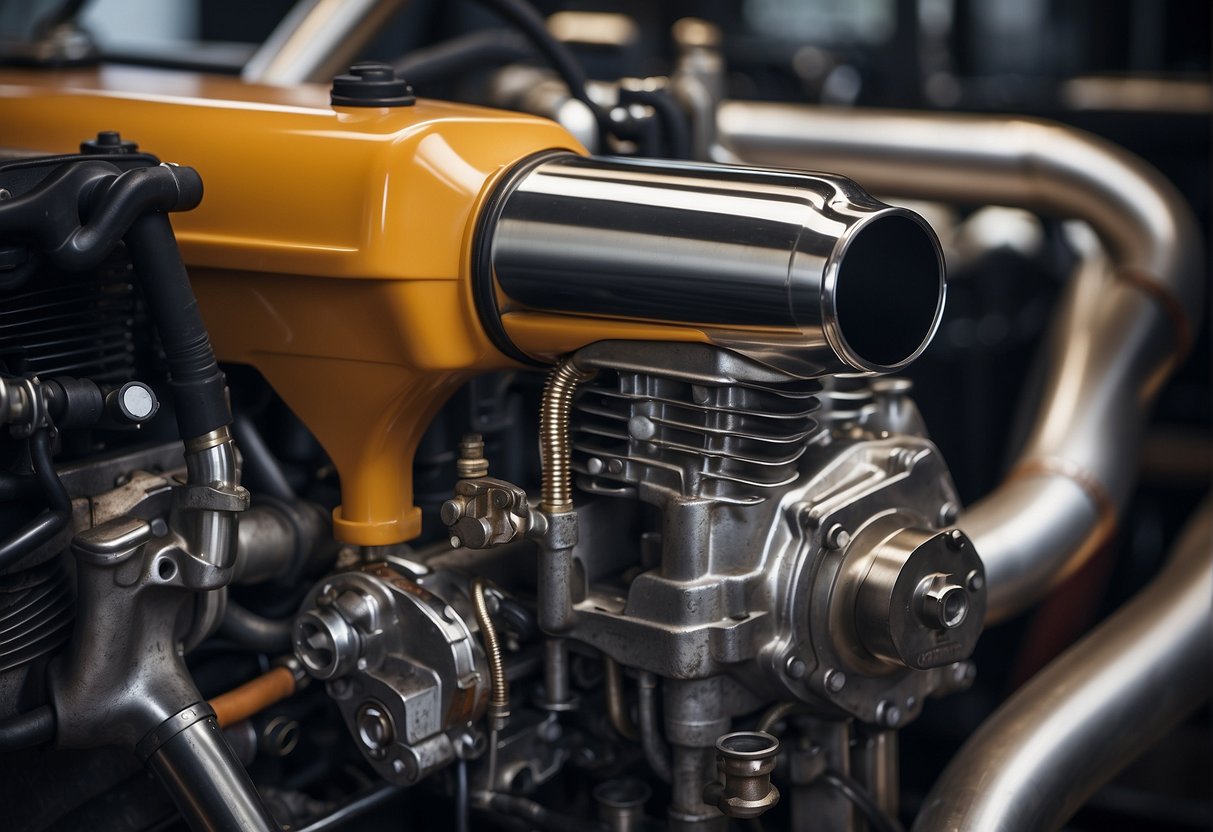

An engine intake system with air entering, fuel mixing, and combustion occurring, while exhaust exits, illustrating the process of calculating volumetric efficiency

Our calculation of volumetric efficiency involves a comparison between the amount of air an engine ingests during its intake cycle to the theoretical capacity of the engine cylinders. This is important for any kind of internal combustion engine, whether we’re analyzing a small car engine or a large industrial power plant.

An engine’s design and condition play significant roles in its VE. The process not just enlightens our understanding of an engine’s current state but also serves as a guide in engine tuning and modifications.

When we calculate volumetric efficiency, we consider various factors such as air temperature, atmospheric pressure, and the engine’s operational parameters.

This figure is expressed as a percentage, with a higher percentage indicating a more efficient engine. An engine with 100% VE is considered ideal, meaning it’s able to completely fill its cylinders with air. However, real-world engines often operate at less than 100% VE due to a variety of design and operational factors.

Measuring Volumetric Efficiency

Volumetric efficiency (VE) is a critical parameter for assessing an engine’s performance. Calculating VE lets us quantify the efficiency with which an engine fills its cylinders with air.

Utilizing the VE Calculator

VE calculators are digital tools that simplify the process of measuring an engine’s VE.

By inputting specific engine parameters such as engine speed (RPM), intake air temperature (IAT), and atmospheric pressure, these calculators can swiftly provide VE estimates.

It’s essential to provide accurate data to these calculators to ensure the correctness of the VE calculation. Here is the basic use of a VE calculator:

Input Parameter Needed Example Value VE Result
Engine Speed RPM 6500 85%
Air Temperature IAT (°C) 25
Atmospheric Pressure Pressure (kPa) 101.3

Applying the Formula

The formula for VE is a ratio of the actual volume of air inhaled into the cylinders to the theoretical volume if the cylinders were fully filled. We express VE as a percentage. The formula is as follows:

VE (%) = (Actual Air Mass Flow / Theoretical Air Mass Flow) x 100%

Precise measurements of pressure and temperature are crucial to determining the actual air mass flow rate.

Understanding Temperature and Pressure Effects

Temperature and pressure variations significantly influence VE.

For instance, higher altitudes lead to a drop in atmospheric pressure, likely reducing VE as less air enters the engine. Conversely, cooler air is denser, potentially increasing the air mass entering the engine, thus improving VE.

Monitoring IAT and atmospheric pressure is vital, particularly when tuning engines for performance in varying climates and altitudes.

⚠️ Important Note

Always cross-reference VE readings with real-world performance tests to ensure accuracy and reliability.

Improving Engine Efficiency

In our quest for peak engine performance, enhancing volumetric efficiency serves as a pivotal aspect. We aim to maximize the air-fuel mixture entering the engine’s cylinders for combustion. Here’s how we can optimize various subsystems of an engine to improve overall efficiency.

Optimizing Intake and Exhaust Systems

By designing intake and exhaust systems that promote smoother airflow, we prevent restrictions that can hamper performance.

An optimized intake system ensures that a more substantial volume of air reaches the combustion chamber. Similarly, a well-designed exhaust system effectively expels exhaust gases, which, in turn, allows fresh air to fill the cylinders more efficiently.

Let us consider aftermarket components such as performance filters and exhausts that can enhance these systems.

Advancing Ignition and Valve Timing

Refining ignition and valve timing can significantly influence an engine’s efficiency.

Advancing the timing of the spark can lead to more complete combustion, thus extracting more energy from the fuel. As for valve timing, adjusting the moments the intake and exhaust valves open and close can improve the engine’s ability to breathe.

  • Ignition Timing: Optimal spark timing ensures fuel combustion occurs at the precise moment to maximize power and efficiency.
  • Valve Timing: Careful calibration allows for better cylinder filling and exhaust gas expulsion.

Exploring Forced Induction Benefits

Forced induction systems like turbochargers and superchargers pressurize the air intake to above-atmospheric levels. This increases the amount of air forced into the engine, hence improving the volumetric efficiency significantly.
  • Turbocharging harnesses exhaust gas energy to spin a turbine, compressing the intake air, and is known for its efficiency and power gains.
  • Supercharging is driven mechanically via the engine’s belt system, providing a more immediate response in power delivery.

Both methods are highly effective at increasing the density of the air charge and when coupled with intercoolers, which cool the pressurized air, we see even further gains in performance.

The Impact of Engine Design on VE

Volumetric efficiency (VE) is critically influenced by engine design elements such as displacement and airflow components. We’ll examine these factors to better understand how they affect VE.

Comparing Engine Types and Displacement

Displacement, measured in cubic centimeters (cc) or liters, significantly impacts VE. A larger displacement generally indicates an engine has more space to draw in air and fuel, which can contribute to better VE.

However, the type of engine, such as inline, V-type, or flat configurations, also alters airflow characteristics. We see that the configuration can affect how efficiently the engine breathes, especially when considering the number of cylinders and their arrangement.

Key Engine Types:
  • Inline: Cylinders arranged in a single line, typically offering consistent power delivery.
  • V-Type: Cylinders in two banks forming a ‘V’ shape, can have higher VE in a compact layout.
  • Flat: Cylinders in two opposing banks, known for a lower center of gravity and even fire intervals.

Analyzing Camshaft and Intake Manifold Contributions

The camshaft and the intake manifold are vital to VE, as they determine air flow into and out of the cylinders.

The camshaft opens and closes valves at precise timings, influencing how much air can enter during the intake stroke. Likewise, the design of the intake manifold dictates air distribution to the cylinders.

A high-performance cam can increase the duration that valves remain open, allowing more air to be drawn in, improving VE.

Diagnosing and Enhancing Performance

To boost an engine’s performance, efficiently diagnosing issues and calibrating systems is key. Our focus will be precise steps for interpreting engine data and adjusting for optimal fuel efficiency and emissions.

Interpreting Engine Data with Scan Tools

Effectively using a scan tool, we can gather vital engine operation data. The data includes but is not limited to RPM, air pressure, and engine load.

This information allows us to perform a volumetric efficiency (VE) test. A well-performing engine should ideally approach 100% VE, which indicates maximum air intake.

By analyzing data from the scan tool, we diagnose potential airflow restrictions or inefficiencies in the fuel mixture.

Adjusting for Fuel Efficiency and Emissions

Grammatical adjustments and fine-tuning based on scan tool data directly influence fuel economy and emissions.

With scan tools, we monitor parameters like oxygen sensor readings to ensure a balanced air-fuel mix, leading to better fuel efficiency and lower emissions.

Calibration involves altering the engine’s ECU maps that control fuel delivery to match the air intake volume.

Adjustment Impact on Economy Impact on Emissions
Air-Fuel Ratio Optimization can reduce fuel consumption. Correct ratios lower harmful emissions.
Ignition Timing Advanced timing can improve power and efficiency. Precise timing reduces unburnt fuel, decreasing pollutants.
⚠️ Important

Prioritize accuracy in data interpretation and subsequent adjustments.

Inaccurate data can lead to poor performance and increased emissions, which are detrimental to both the vehicle and the environment.
