How Many Camshafts Does a V8 Have? Understanding V8 Engine Mechanics

The number of camshafts in a V8 engine is an integral aspect of its design that affects its performance and efficiency.

Typically, V8 engines can have different configurations leading to a variance in the number of camshafts.

For instance, traditional overhead valve (OHV) V8 engines, also known as pushrod engines, usually possess a single camshaft located in the engine block. This camshaft operates the valves via lifters, pushrods, and rocker arms.

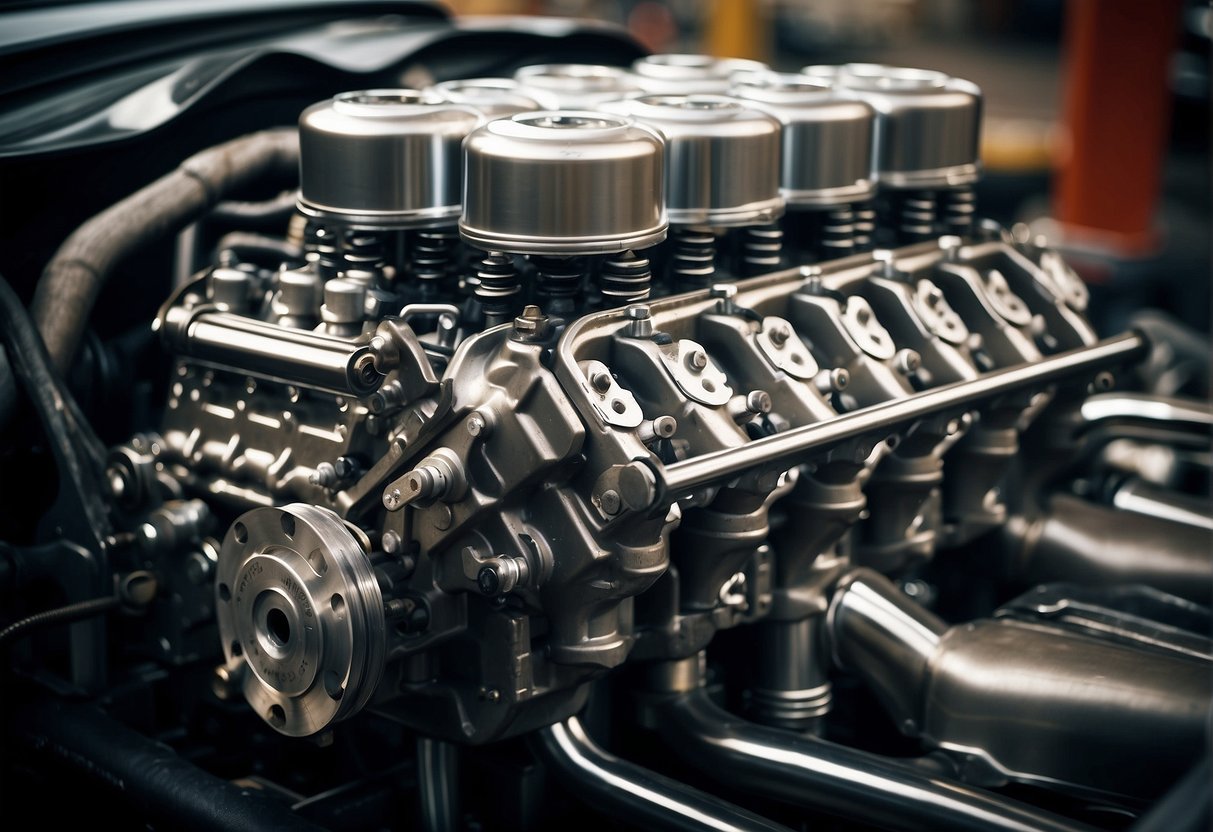

A V8 engine with four camshafts positioned above the cylinders

In contrast, overhead cam (OHC) engines, which include single overhead cam (SOHC) and double overhead cam (DOHC) configurations, have camshafts located at the top of the cylinder heads.

SOHC V8 engines feature two camshafts, one per cylinder bank, controlling the intake and exhaust valves directly or sometimes via rocker arms. Meanwhile, DOHC V8 engines employ four camshafts, with each cylinder bank having two camshafts: one for intake valves and the other for exhaust valves.

Understanding the connection between the camshaft and other engine components, such as the crankshaft and valves, is key.

The crankshaft’s rotation, influenced by the engine’s firing order, is synchronized with the camshaft(s) via a timing belt or chain.

This synchronization ensures that the valves open and close at the correct time relative to the position of the pistons inside the cylinders.

An accurate timing system is crucial for optimal engine performance and preventing potential damage to engine components.

Engine Design and Performance

The configuration of camshafts in a V8 engine significantly influences its performance. We will explore the distinctions between different camshaft designs and how they impact engine timing, power output, and the overall dynamics of cylinder heads and valvetrain.

Comparing OHV, SOHC, and DOHC Configurations

In traditional OHV (OverHead Valve) engines, a singular camshaft operates within the engine block. This setup typically results in a compact design suited for high torque at lower RPMs.

As we transition to SOHC (Single OverHead Cam) engines, you will find one camshaft per bank of cylinders, allowing for better air flow and slightly more precise valve timing.

DOHC (Double OverHead Cam) engines take this further with two camshafts per cylinder bank.

This configuration supports four camshafts in total for a V8 and permits independent control of intake and exhaust valves, facilitating higher RPMs and enhanced engine performance.

Impact of Camshafts on Engine Timing and Power

Performance can vary markedly with each engine’s camshaft layout.

OHV engines, with their single camshaft, are seen as the bulwark of low-end torque and durability.

SOHC engines offer a middle ground, boosting the engine’s ability to breathe and perform better at mid-range RPMs.

Meanwhile, DOHC configurations, with one camshaft dedicated to intake valves and the other to exhaust valves, provide superior control over engine timing.

This benefit translates to increased power, higher rev ceilings, and better overall engine efficiency.

Cylinder Heads and Valvetrain Dynamics

Conceptual differences in cylinder heads correlate directly to the valvetrain and the arrangement of camshafts.

OHV’s uncomplicated pushrod system contrasts with the additional space and complexity DOHC systems incur, the latter requiring intricate cylinder heads.

The meticulous design of DOHC cylinder heads supports their high-performance intent, optimizing valve operation for maximum power output.

SOHC engines find themselves in between, providing a balanced blend of complexity and performance potential.

The Role of Camshafts in Engine Functionality

Camshafts are pivotal in dictating the operation of intake and exhaust valves, synchronizing their movement with the engine’s crankshaft to optimize performance.

The Interplay between Camshaft Design and Valve Operation

Camshaft Components and Their Functions:

  • Camshaft: A rotating cylindrical shaft fitted with cam lobes.
  • Cam Lobes: Eccentric shapes that convert rotational motion into linear motion to actuate valves.
  • Timing Chain: Ensures the camshaft and crankshaft rotate in harmony.

The camshaft’s cam lobes are designed to press against the valve lifters or rockers to open the intake and exhaust valves at precise timings.

Each lobe’s shape determines the valve lift—the distance the valve travels from its seat—and duration, referring to the length of time the valve remains open.

The timing chain or belt maintains the crucial timing relationship between the crankshaft and camshaft rotation.

We ensure the valves open and close at specific points in the piston’s cycle for optimal engine efficiency.

Variable Valve Timing and Lift: Enhancing Efficiency

We use technologies like Variable Valve Timing (VVT) and Variable Valve Lift (VVL) to adapt the engine’s operation based on driving conditions for improved fuel efficiency and performance.

Advantages of Variable Valve Technologies
  • Adjusts the timing of valve opening/closing and valve lift.
  • Optimizes engine breathing for various speeds and loads.
  • Improves fuel economy, emissions, and power output.

These systems allow us to alter the behavior of the valves’ movement without needing to change the physical camshaft.

Through the use of advanced mechanisms and electronics, we can precisely control when the valves open and close as well as the extent of their opening (lift), thereby improving engine responsiveness, fuel efficiency, and overall performance.

This adaptive approach allows the engine’s operation to be fine-tuned in real-time according to the demands placed upon it.

Advancements in Performance and Fuel Efficiency

In our quest for greater power and better fuel economy, advancements have been significant.

Variable Camshaft Timing (VCT) plays a crucial role in optimizing engine performance. VCT adjusts camshaft timing, enhancing horsepower, achieving fuel efficiency, and broadening the power band.

The result is a more efficient engine capable of adapting its performance characteristics depending on the driving situation.

V8 Engine Innovations:
  • Better fuel efficiency through precise valve timing adjustments
  • Increased horsepower due to improved air-fuel mixing
  • Optimized power band for superior performance across various RPMs

Moreover, our pursuit of high performance is never at the expense of efficiency.

The integration of technologies like direct fuel injection alongside VCT means we’re making V8 engines that are not just more powerful, but also consume less fuel.

The harmony between power output and efficiency is paramount in modern engine design.

With these innovations, our engines offer dynamic performance, demonstrating robust acceleration and smooth cruising ability. We ensure that we deliver a compelling driving experience that is also conscientious of environmental concerns and economic demands.
