Different Types of Engine Block Configurations: A Guide to Automotive Designs

As automotive enthusiasts and industry professionals, we recognize the vital role of the engine block in any vehicle powered by an internal combustion engine. This central component, also known as the cylinder block, houses the cylinders, and other integral parts like the crankcase, which contribute fundamentally to a car’s performance.

Its structure not only supports and aligns these elements but also contributes to the overall durability and efficiency of the engine.

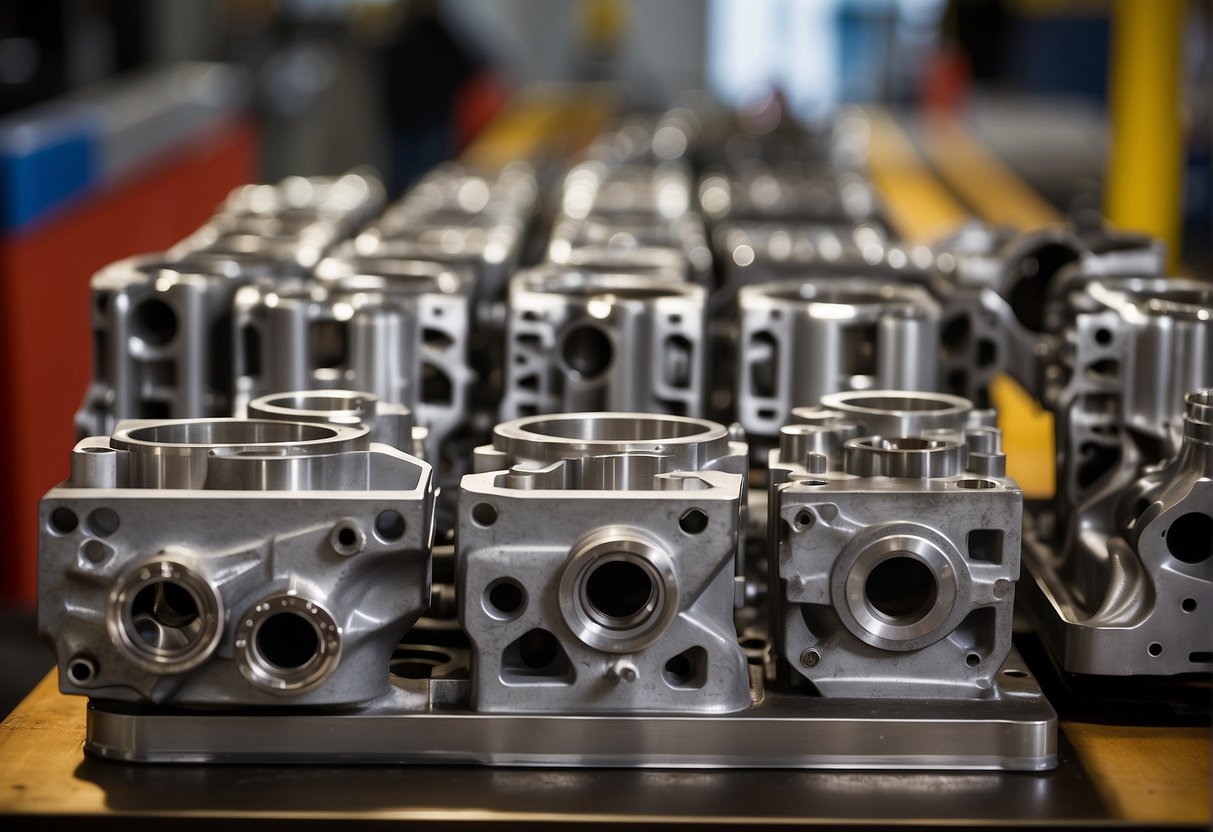

A variety of engine block configurations displayed in a row. Each block has unique shapes and sizes, showcasing the diversity in engine designs

In the realm of internal combustion engines, various engine block configurations exist, each with its own set of advantages tailored to different vehicle designs and performance requirements.

We frequently encounter inline and V engine configurations that are commonplace in modern automobiles.

An inline engine features a single row of cylinders arranged in a straight line, often employed for its smooth operation and efficiency in compact cars.

Meanwhile, the V-type engine organizes cylinders into two angled banks, allowing for a higher power output in a more condensed space, making it a popular choice for performance vehicles and larger automobiles where space is at a premium.

Engine Block Fundamentals

Engine blocks form the backbone of an internal combustion engine, incorporating numerous critical components within a single structure.

Materials and Manufacturing

The primary materials used in engine block construction are cast iron, aluminum, and compacted graphite iron (CGI). Each offers distinct advantages.

Materials Used in Engine Blocks:

  • Cast Iron: Renowned for its strength and durability, ideal for heavy-duty applications. Offers excellent wear resistance and dampens engine noise effectively.
  • Aluminum: Weighs less than cast iron which improves fuel efficiency and reduces overall vehicle weight. It conducts heat well, aiding engine cooling.
  • Aluminum Alloys: Provide a balance of lightweight properties and sufficient strength. Often used in high-performance engines.
  • Compacted Graphite Iron (CGI): Exhibits greater strength than conventional cast iron, with better resistance to thermal and mechanical shock.

The manufacturing process of an engine block typically involves casting or machining, where precision is key to accommodate cylinders, pistons, and other components.

Our choice of material impacts the engine block’s strength, heat management, and size.

Design and Structure

Engine block design is complex, focusing on not just housing pistons and cylinders, but also integrating coolant passages, cylinder heads, and main bearing caps.

Engine Block Component Function Remark
Cylinders House the pistons, forming the combustion chambers Number and arrangement vary by engine type
Pistons Translate combustion force into mechanical movement Fit tightly within the cylinders
Cylinder Heads Seal the top of the cylinders Contain valve train components
Coolant Passages Allow flow of coolant to manage engine temperature Critical for preventing overheating
Main Bearing Caps Secure the crankshaft at the bottom of the block Vital for crankshaft stability

Modern engine blocks, whether the V, inline, or flat configuration, have evolved to optimize space and engine efficiency. The cylinder bank or banks are arranged in specific layouts that contribute to the overall compact nature of the engine design, allowing for a smoother integration within the vehicle’s chassis.

Internal Components and Their Functions

Engine blocks are the backbone of internal combustion engines, housing integral components that facilitate combustion and power generation. Our focus here is on the moving parts, lubrication system, and cooling mechanisms, which are essential for engine efficiency and longevity.

Moving Parts

Pistons and Crankshafts: Pistons convert the energy generated from combustion into motion, which is then transferred to the crankshaft. This rotational motion ultimately powers the vehicle. Connecting rods join pistons to the crankshaft, ensuring synchronized motion.

Camshafts and Valves: Camshafts regulate the opening and closing of engine valves, allowing air and fuel into the combustion chamber and letting out exhaust gases. This timing is critical for efficient engine operation.

Lubrication System

Oil Circulation

The lubrication system ensures that the moving parts operate smoothly, without excessive friction or heat. Key elements include:

  • Oil Pump: Initiates oil circulation from the oil pan.
  • Oil Filter: Removes impurities from the oil.
  • Oil Galleries: Network of passageways directing oil to critical engine components.

Minimizing wear and tear, the lubrication system extends the life of engine parts and enhances overall performance.

Cooling Mechanisms

Engines produce substantial heat; managing this heat is vital.

  • Coolant: A fluid mixture, often antifreeze and water, that absorbs engine heat.
  • Water Pump: Circulates coolant through the engine and radiator.
  • Cooling System: Involves coolant, water pump, and radiators to dissipate heat, maintaining optimal engine temperature.

Reliable cooling prevents overheating, ensuring components within the engine block do not warp or fail due to excessive temperatures.

Engine Configurations and Layouts

Exploring the diverse configurations of car engines, we dive into the mechanisms that drive power and performance. Our focus is on the inherent characteristics of common engine types, and how balancing and performance are impacted by these designs.

Common Engine Types

Different engine configurations influence a vehicle’s power, efficiency, and space requirements.

Inline engines, straightforward in design, feature a single row of cylinders aligned with the crankshaft. This linear configuration often results in a lower center of gravity, contributing to improved vehicle stability.

V engines, including the popular V8 layout, arrange cylinders in two angled banks, allowing for a compact design that fits well in a variety of vehicle frames. The V configuration also aids in better weight distribution across the engine bay.

Boxer engines have cylinders laid flat and opposed to each other, further lowering the center of gravity and enhancing balance, whilst radial engines, used less frequently in cars and more in aircraft, have cylinders arranged in a circle around the crankshaft.

Diesel engines often use these configurations but are optimized for the high-compression required for diesel fuel.

Rotary engines, or Wankel engines, offer a completely different approach, utilizing a rotor instead of pistons, providing a compact and smooth high-rpm power source.

Balancing and Performance

Engine layout significantly influences vehicle dynamics and performance. A well-balanced engine, like a boxer or V layout, typically experiences less vibration, leading to smoother operation and increased longevity.

Additionally, the configuration can affect the vehicle’s overall balance and handling capabilities.

Horsepower and torque outputs are also byproducts of engine design. V engines are renowned for their high horsepower, whereas inline and flat engines often excel in torque delivery at lower rpms, essential for acceleration.

We recognize that while straight engines are simpler and generally more cost-effective to manufacture, the complexity of V or boxer engines can offer superior balance and a lower center of gravity, beneficial to performance enthusiasts.

Maintenance, Troubleshooting, and Upgrade

Engine performance and longevity depend on regular maintenance, prompt troubleshooting, and strategic upgrades. We explore the necessary steps for preserving engine blocks and adapting to new technology enhancements.

Engine Rebuilding and Repair

Regular maintenance is crucial for engine blocks, focusing on the cooling system to prevent overheating, which affects thermal conductivity and can lead to cracks.

During rebuilding, evaluating the block’s rigidity and the condition of cylinder liners is key. We opt for monobloc designs for added strength and aluminum blocks for improved heat dissipation.

Component Maintenance Tips
Cooling System Regular flushing and checking for leaks. Monitor coolant levels and wear.
Cylinder Liners Inspect for wear or damage. Replace if necessary, considering wet liners for upgrade.
Intake Manifold Ensure it’s securely fastened and gasket surfaces are free from cracks.

Advancements in Engine Technology

Staying abreast of technology is imperative. New materials and designs offer better thermal conductivity and rigidity.

We recommend considering aluminum blocks for their superior heat handling and lower weight.

Advancements in electronic fuel injection systems improve engine efficiency and performance.

⚠️ A Warning

Always consult with a professional when attempting to modify or upgrade engine components.

Incorrect alterations can lead to significant engine damage.
